    Centricator C0-S

    MADE IN GERMANY

    Centring, positioning, aligning, adjusting, checking, probing flat faces and edge finding with a working precision of 5 µm: This high-precision centre finder Centricator CO-S will allow you to quickly and accurately find the centre of bores or cylindrical workpieces. High-precision mechanics with circumferential probe and stationary dial gauge are the typical centrepiece of this measuring device.

    Benefits

    • Working accuracy of 5 µm
    • With fixed clamping shank, Ø 16 mm
    • Dial gauge with scale value of 0.005 mm
    • 1 probe tip with ball Ø 5 mm (for bore)
    • 1 probe tip bent with ball Ø 5 mm (for shaft)

    Technical data

    Measuring accuracy of dial gauge:
    0.005 mm
    Inside touch probe rangediameter:
    Ø = 2 – 125 mm
    Outside touch probe rangediameter:
    Ø = 0 – 125 mm
    Flat faces:
    120 – 160 mm
    Inside probe depth:
    40 – 55 mm
    Outside probe depth:
    40 – 55 mm

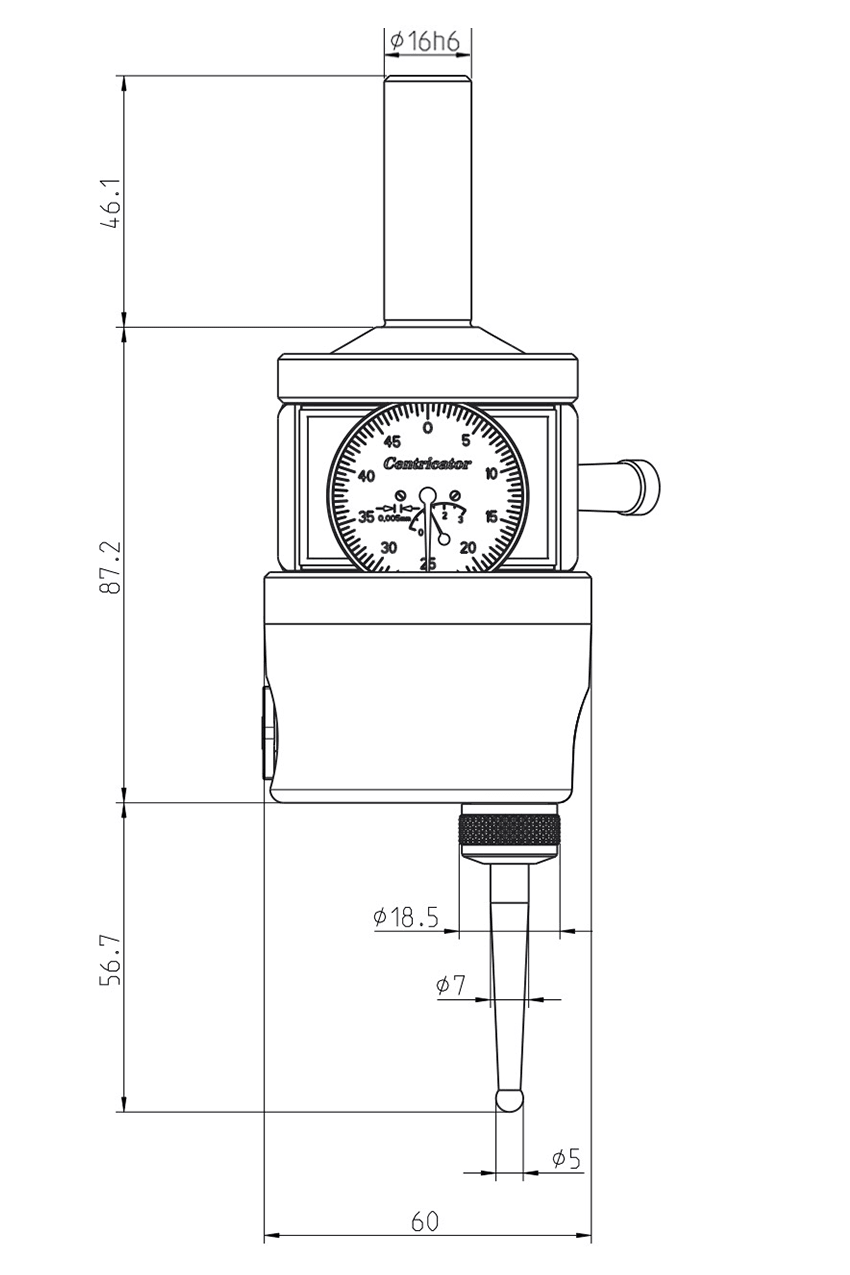

    Dimensions:
    Length 141.9 mm, Ø 60 mm
    Weight:
    600 g

    Order

    Haff & Schneider Art. No. 130160

    Order article via e-mail

    Accessories

    Startseite Bild Eigenprodukte

    Probe tip bent with ball Ø 5 mm
    (Art. No. 130171)

    Startseite Bild Eigenprodukte

    Probe tip straight with ball Ø 5 mm
    (Art. No. 130240)

    Startseite Bild Eigenprodukte

    Probe tip straight with ball Ø 1.6 mm
    (Art. No. 130688)

    Startseite Bild Eigenprodukte

    Edge finder
    (Art. No. 130678)
